Nema 8 Micro Double Hollow Shaft Stepper Motor With Length 41mm and Holding Torque 30mN.m

Product Categories

Chongqing Umot Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Nema 8 Micro Double Hollow Shaft Stepper Motor With Length 41mm and Holding Torque 30mNm
Brand: UMot
Price: 24.42 USD

Warranty : 3months-1year

Place of Origin : Chongqing

Brand Name : UMot

Model Number : Nema 8

Phase : 2

Type : Hybrid

Product Name : Hollow Shaft Stepper Motor

Motor Size : Nema 8

Step Angle : 1.8°

Motor Height : 41mm

Holding Torque : 30mN.m

Rated Current : 0.8A

Front Shaft : 20mm

Back Shaft : 10mm

Shaft Diameter : 5mm

Motor Weight : 0.1kg

MOQ : 5 pieces

Price : $24.42/pieces 5-99 pieces

Contact Now

Nema 8 Stepper Hollow Shaft Motor Price Hybrid Micro Hollow Shaft Stepper Motor For Water Pumps Booster Equipment

Item	Value
Product Name	Hollow Shaft Stepper Motor
Brand Name	UMot
Motor Size	Nema 8
Step Angle	1.8°
Phase Number	2 Phase
Motor Height	41mm
Holding Torque	30mN.m
Rated Current	0.8A
Front Shaft	20mm
Back Shaft	10mm
Shaft Diameter	5mm
Motor Weight	0.1kg
Temperature Rise	80°C Max(Rated Current, 2 Phase Power)
Ambient Temperature	-20°C-+120°C
Insulation Resistance	100MΩMin, 500VDC
Radial Runout	0.02 Max.(450g Load)
Axial Runout	0.08 Max.(450g Load)

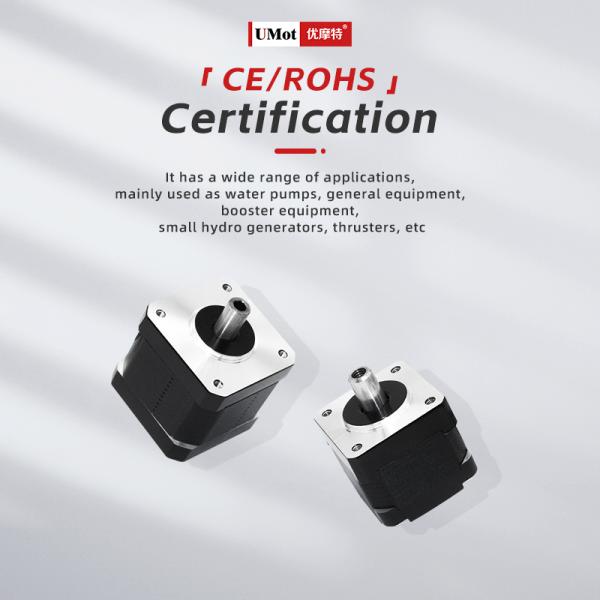

Nema 8 Micro Double Hollow Shaft Stepper Motor With Length 41mm and Holding Torque 30mN.m Images
